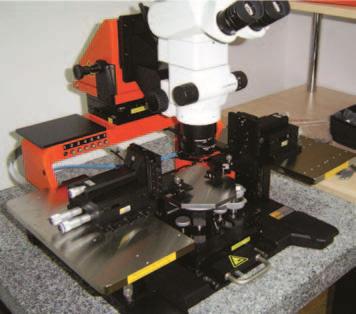

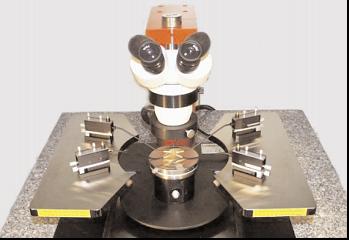

SUSS EASYPROBE EP4
EP4,Suss Microtec, Germany

Technical characteristics:

  • Base machine (base plate with embedded hand rests; sliding stage, 100mm travel in x and y; working position secured by vacuum)
  • Substrate chuck (standard chuck for wafers and substrates up to 100mm; material: stainless steel; working position secured by vacuum)
  • Magnetic probe head semiring (2 semiring suitable for probeheads with magnetic adapter; max. 4x PH120 or 8xPH100)
  • Motic SMZ 140S stereozoom microscope complete with adapter + fixation (microscope body, tube, focus drive; two 15 eyepieces; adjustable integrated illumination; magnification 15x-60x, working distance 80mm).

Applications:

DC characterisation;

*****************************************************************

Application scientist:

Dr. Alexandru Muller, alexandru.muller@imt.ro.
Dr. Mircea Dragoman, mircea.dragoman@imt.ro.
