  1. Schottky cip diodes characterisation

Test Schottky diodes on cip have been fabricated.
First version of test structures with one Schottky diode/cip have been characterised

test structure layout

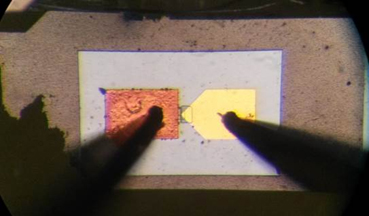

image of the test structure with contacts

I/V characteristic in linear scale

The second version of the test structures has two antiparalel conected Schottky diodes. The I/V characteristic in logarithmic scale is simetric shaped and the slope is slightly lower then the expected value, corresponding to a higher ideality factor.

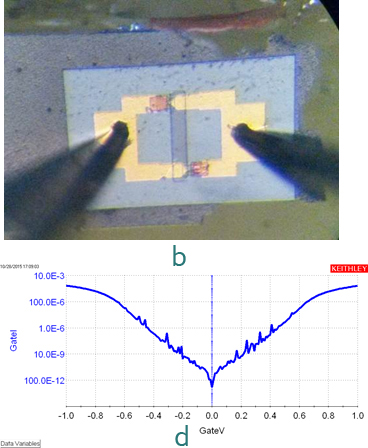

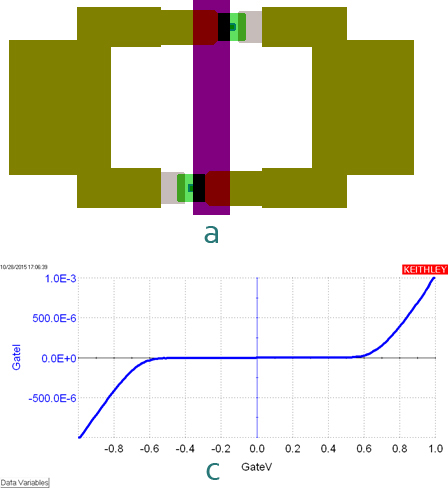

Test structure with two Schottky diodes in antiparallel connection: (a) test structure layout (b) photo image of test structure with contacts (c) I/V characteristic in linear scale (d) I/V characteristic in logarithmic scale

Monolithicaly integrated receiver

A direct detection receiver with a Schottky diode integrated with two folded slot antenas suspended on a thin GaAs membrane has been designed.

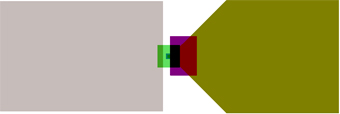

Layout for the monolithic integrated receiver (diode integrated with double folder slot antenna)

Photo image of the monolithic integrated receiver-detail of the thin GaAs membrane


                                (a)                                                     (b)
(a) Schottky diode monolithic integrated with antenaon GaAs membrane

(b) Schottky diode on thick substrate


                                                (a)                                                                                                        (b)

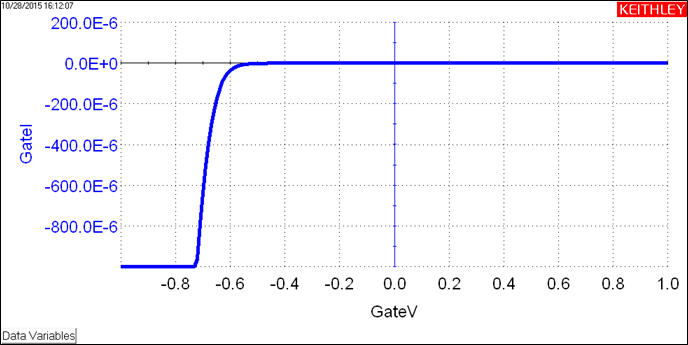

I/V characteristique for the receiving GAAS structure on thick substrate (mauve curve) on thin GaAs membrane (blue curve): (a) linear scale; (b)  logarithmic scale

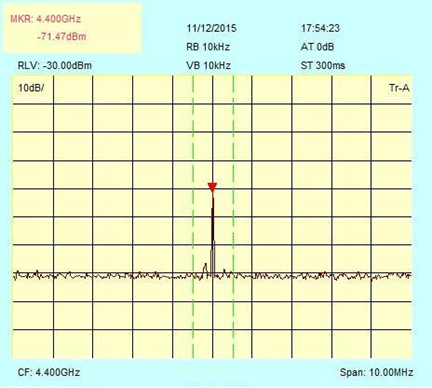

Signal amplitude versus frequency

2. Integrated detector characterization at cryogenic temperatures

The hybrid integrated detector has been introduced in a cryostat and has been tested in dc and in microwave in the range temperature 18 K (– 255 C) şi 295 K (22 C).

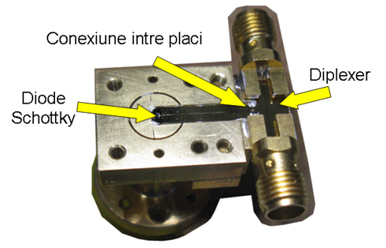

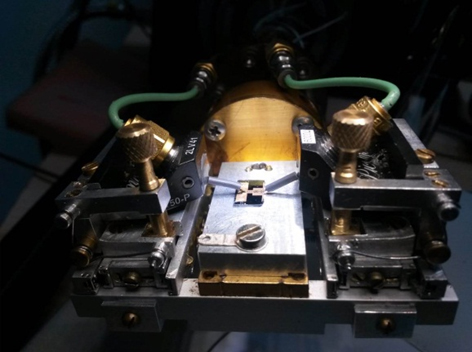

Photo image of the hybrid integrated detector contacted on cryostat support

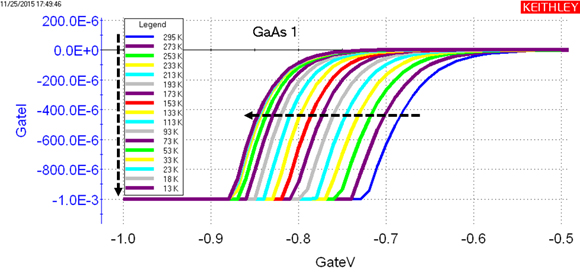

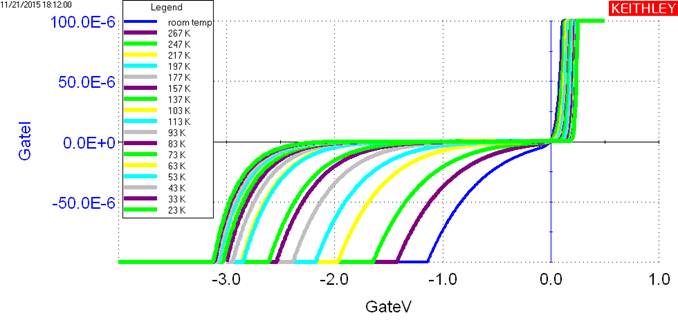

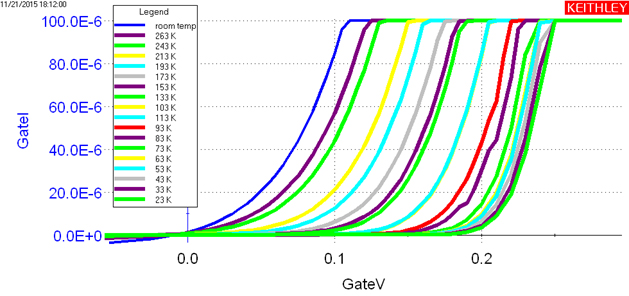

I/V characteristics measured in the temperature range 295 K and 23 K: (a) Linear scale; (b) detail in linear scale



3. Receivers with harmonic mixer

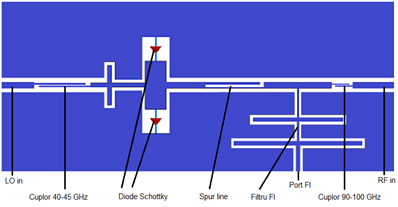

Layout of the harmonic mixer with coplanar waveguides

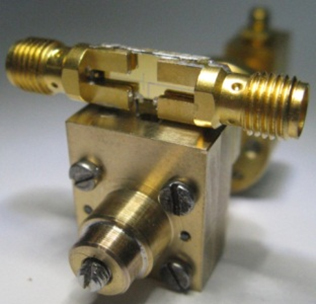

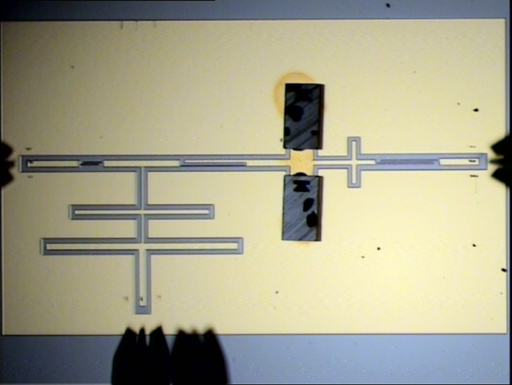

Manufactured experimental structure of the harmonic mixer with coplanar waveguides


                                        (a)                                                              (b)

HR-Si (a) Image of the circuits on HR-Si support; (b) Image of the mixer

Experimental results

Millimeter wave signals have been measured in the 88-98 GHz frequency band, OL signal frequency have been limited under RF signal frequency. The obtained FI signal was in the 2-8 GHz frequency range.

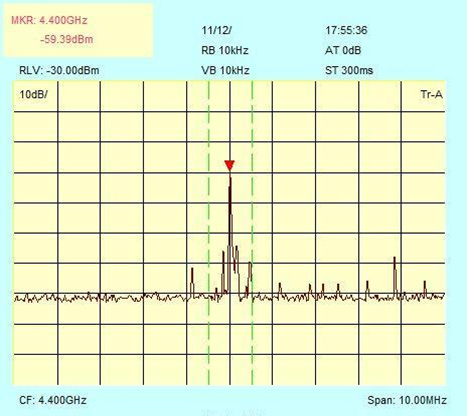

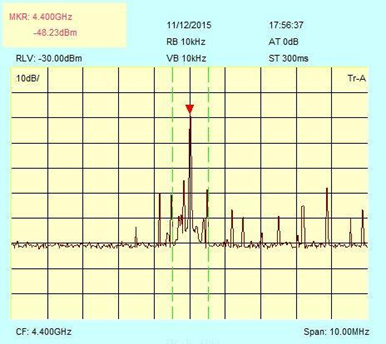

Experimental results obtained with the harmonic mixer with coplanar waveguides for three levels of the signal power: (a) POL = 8,8 dBm, (b) POL = 9,9 dBm, (c) POL = 10,9 dB., for fRF = 91GHz si fOL = 43.3GHz

A considerable signal improvement obtained with the mixer (at fFI = 4,4 GHz) with the local oscillator have been observed.

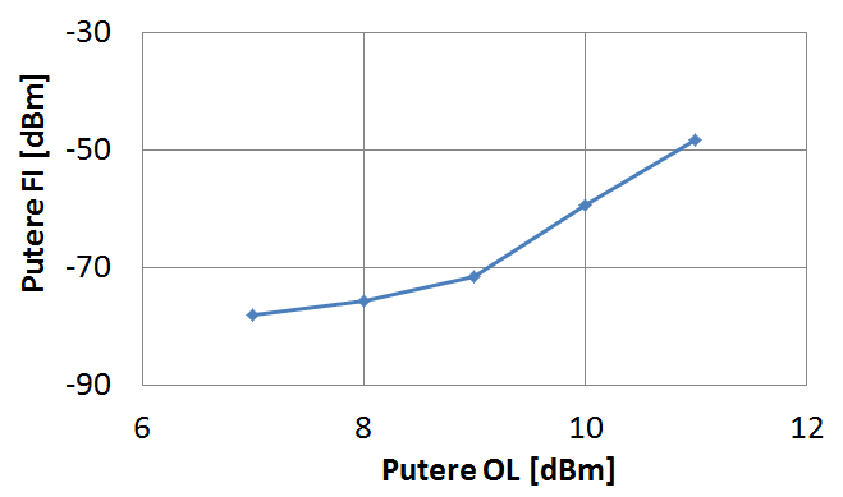

Experimental results: FI power dependence of OL power (a); conversion losses with the RF frequency dependence

Harmonic mixer with coplanar waveguide conversion losses variation with RF signal frequency for 10.8 dBm +/- 0.25 dB OL level. A good uniformity in the 89-96 GHz range is obtained.
