Results

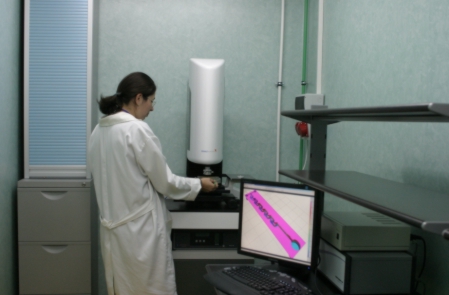

Purchasing of a white light interferometer (WLI) for three-dimensional analysis of MEMS structures |
|
 |
 |

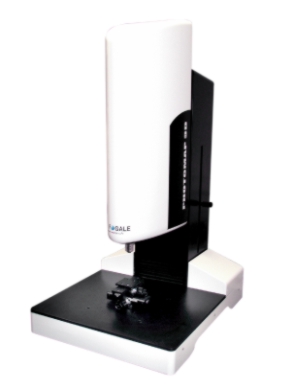

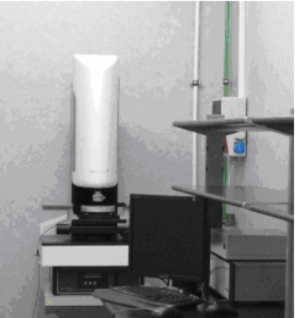

Fogale Photomap 3D Standard - P3D 2006 |
|
 |
|
Results of white light interferometer analysis |
|
 |
|

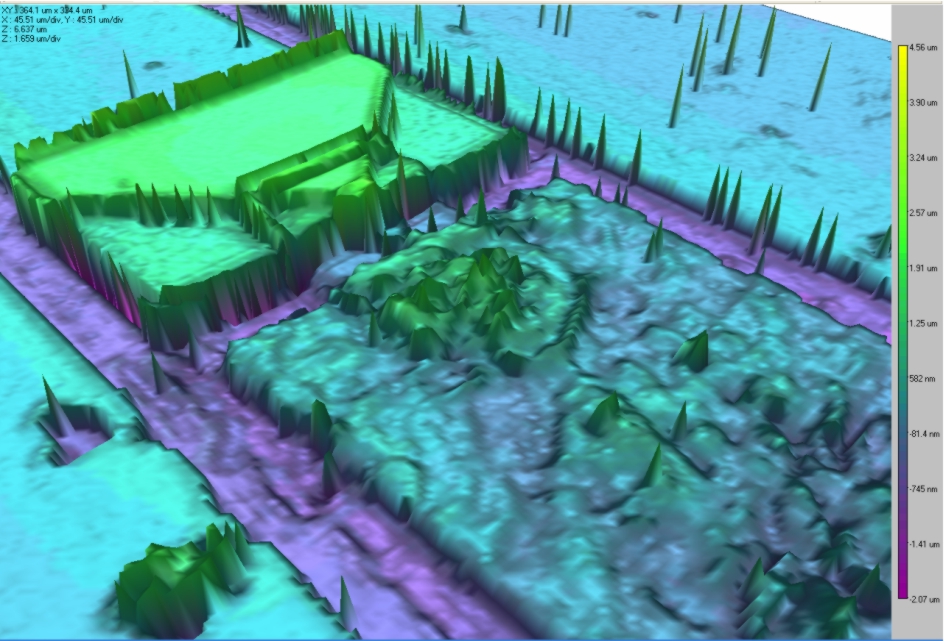

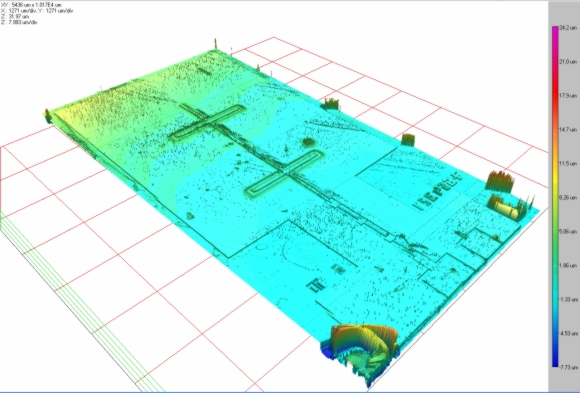

3D image of monolithic integrated receiver for 60GHz obtained by micromachining of GaAs module |
|
 |
|

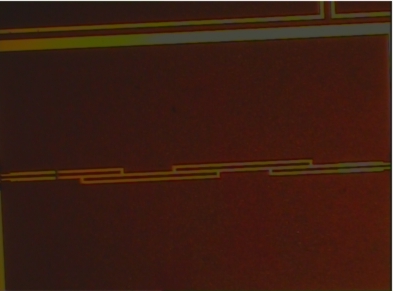

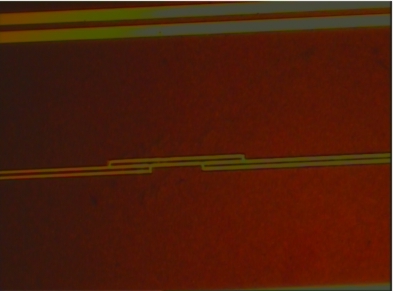

The Schottky diode suspended on membrane – detail of the monolithic integrated receiver for 60GHz obtained by micromachining of GaAs module |
|
 |
|

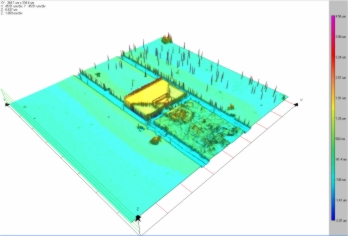

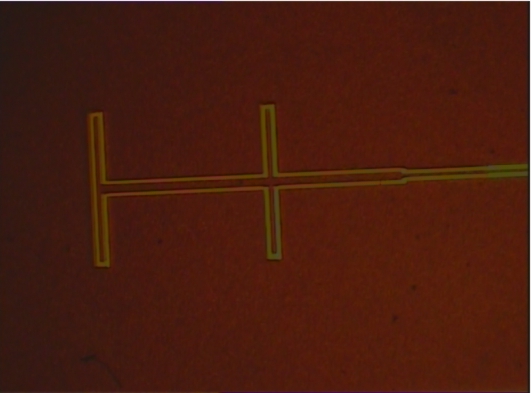

3D image of the Schottky diode suspended on membrane |
|
 |
|

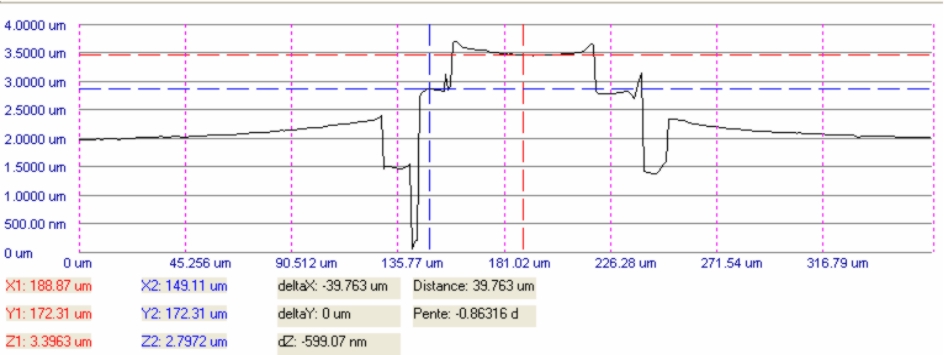

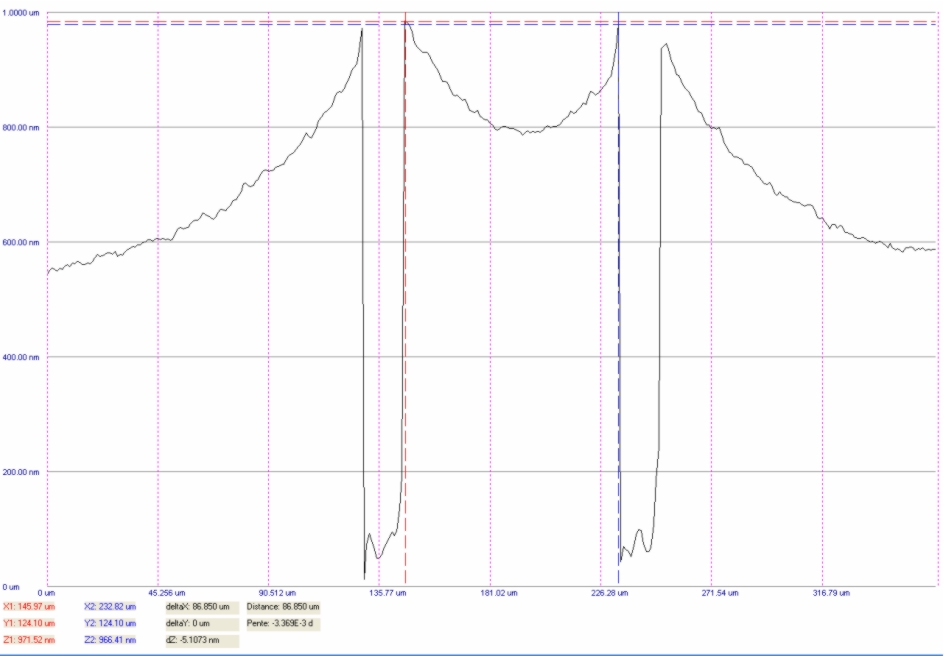

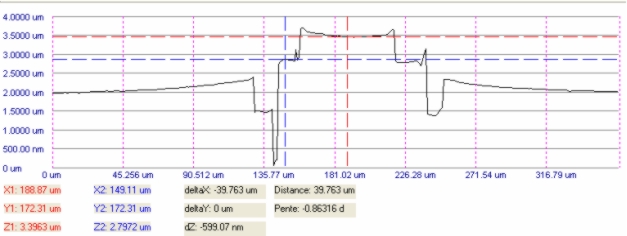

Measuring the thickness of the Schottky metallization (click on the image to enlarge)
|
|
Measuring the high of the mesa etching for the ohmic contact |
|
 |
|

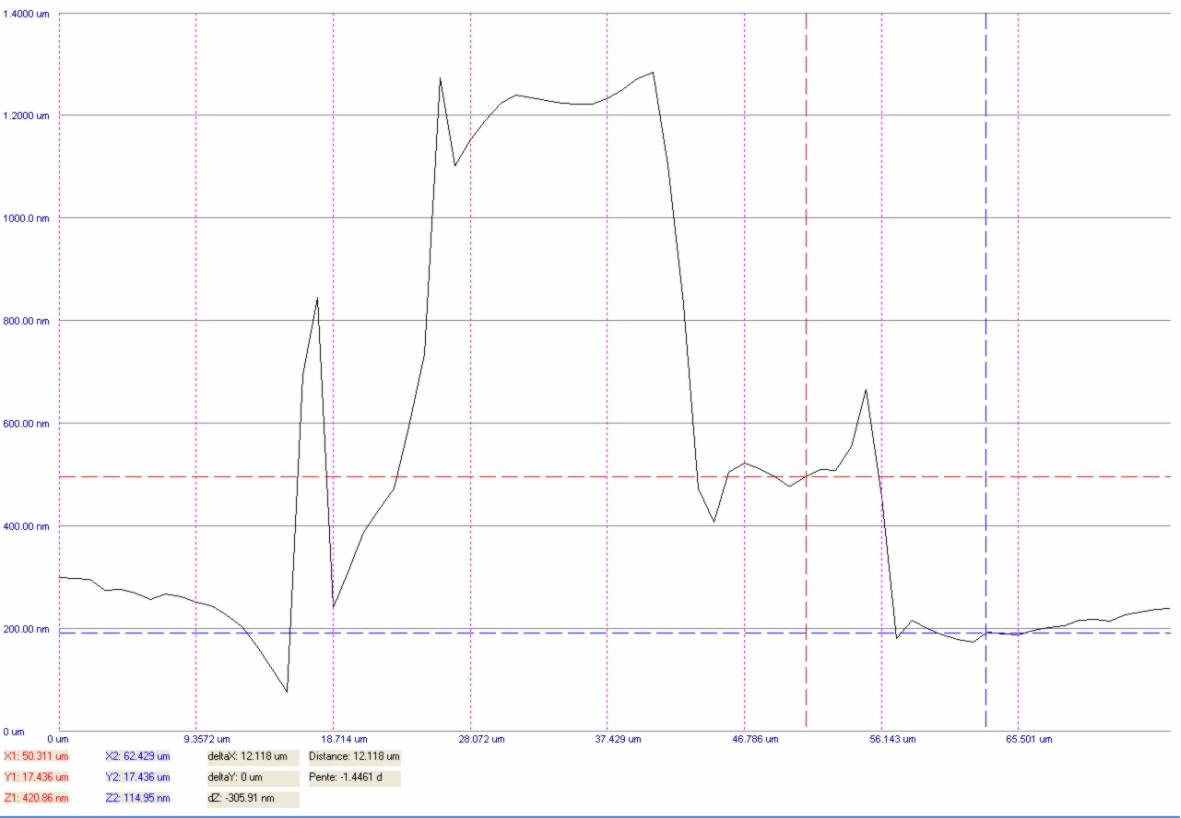

Measuring the width of the central line (click on the image to enlarge)
|
|
 |
|
Induced stress (click on the image to enlarge) |
|
Purchasing the equipment for on wafer characterization up to 110 GHz |
|
 |
|

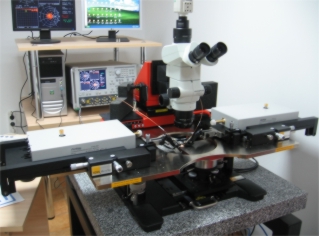

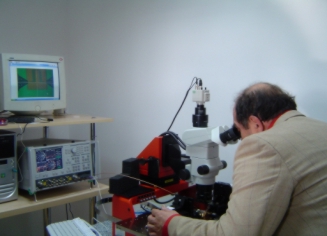

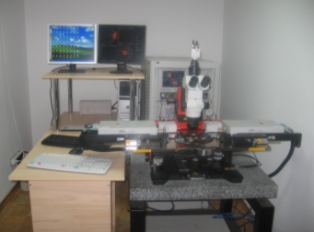

The equipment for on wafer characterization up to 65 GHz, before the up-grade, purchased through the CEEX Programme, Module IV |
|
 |
|
The equipment after the up-grade up to 110 GHz |
|
 |
|
The vector network analyzer for 0.8...65 GHz was purchased through the CEEX Programme, Module IV. The up-grade up to 110 GHz was performed using the SIMMCA Project (Capacities Programme) and the European FP7 project MIMOMEMS |
|

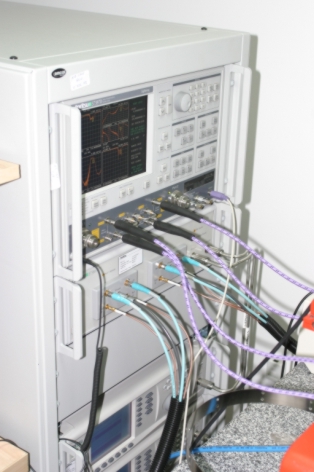

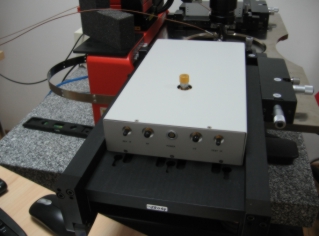

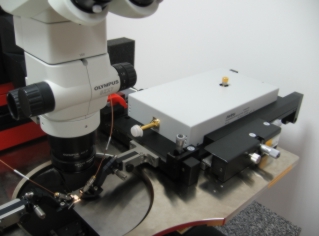

Deatils of the equipment |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
Aquisition of the spectrum analyser till 110 GHz |
|
 |
|

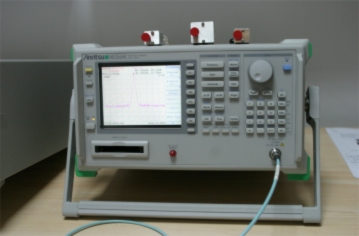

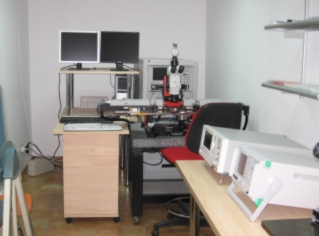

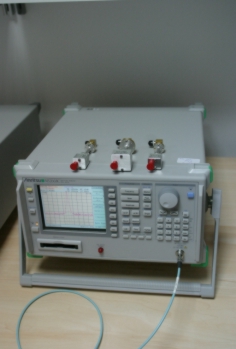

The spectrum analyser and the three mixers that allow signal analysis in the 0,1-110 GHz range, recently purchased in the SIMMCA project |
|
 |
|

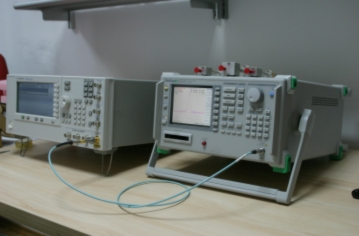

The spectrum analyser (Anritsu) together with the frequency generator (Agilent) up to 110 GHz purchased in the frame of the European FP7 project MIMOMEMS |
|
 |
|

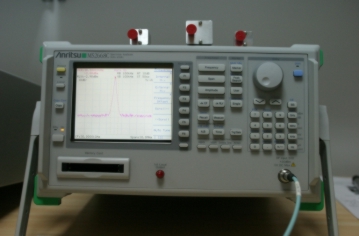

The spectrum analyser measuring a 30 GHz signal |
|
 |
|

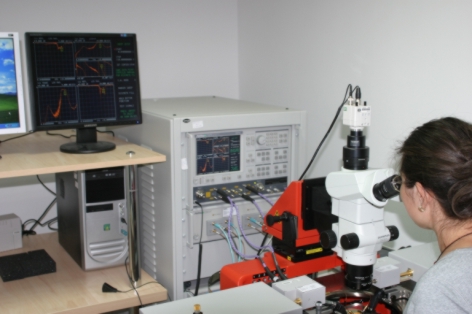

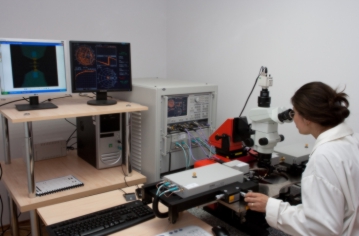

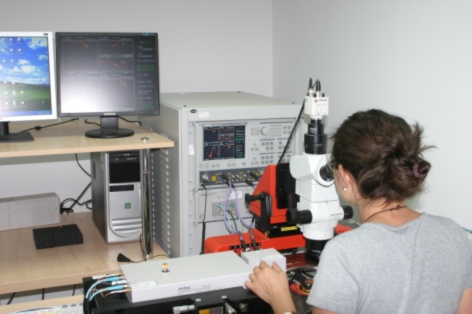

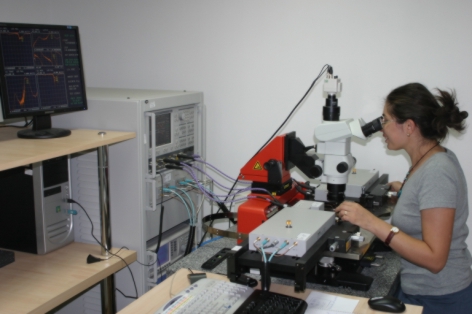

Image from the millimeter wave characterization laboratory up to 110 GHz, able of highly advanced characterizations |
|
|
|
S parameter measurements for 77 GHz and 94 GHz filters and antennae for 77 GHz and 94 GHz, suspended on SiO2/Si3N4/SiO2. |
|
 |
|
Photo image of 77 GHz type A filter |
|
 |
|

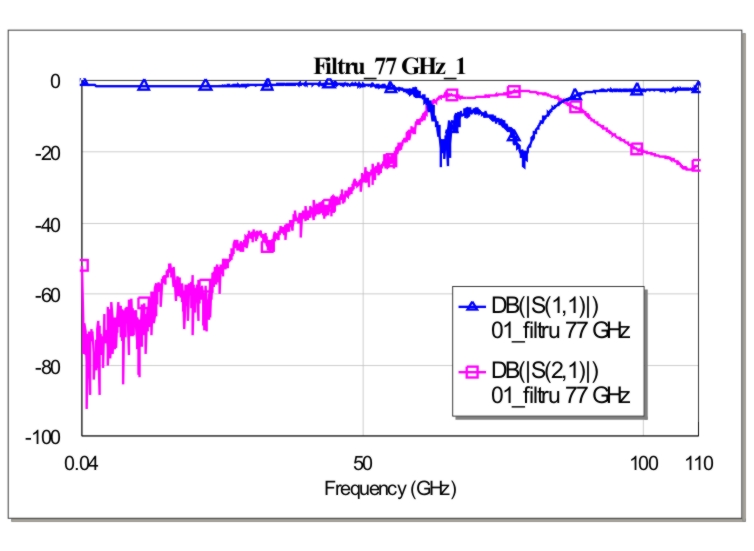

S parameters for77 GHz type A filter |
|
 |
|
Photo image of 77 GHz type B filter |
|
 |
|
S parameters for 77 GHz type B filter |
|
 |
|
Photo image of 77 GHz antenna |
|
 |
|

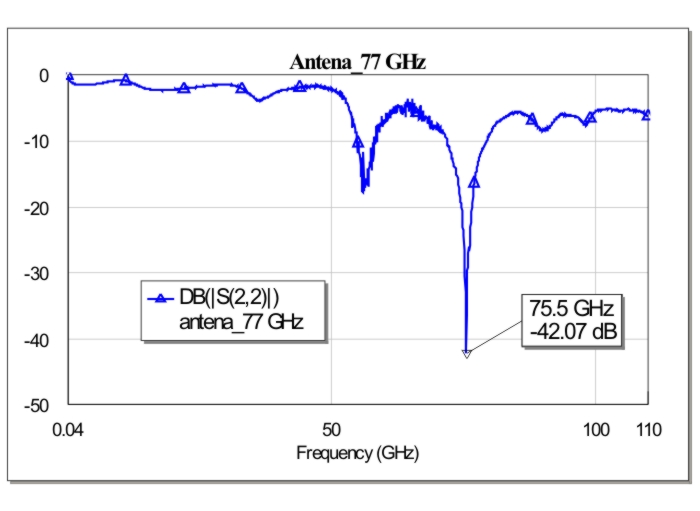

S22 parameter for 77 GHz antenna |
|
 |
|
Photo image of 94 GHz filter structure |
|
 |
|

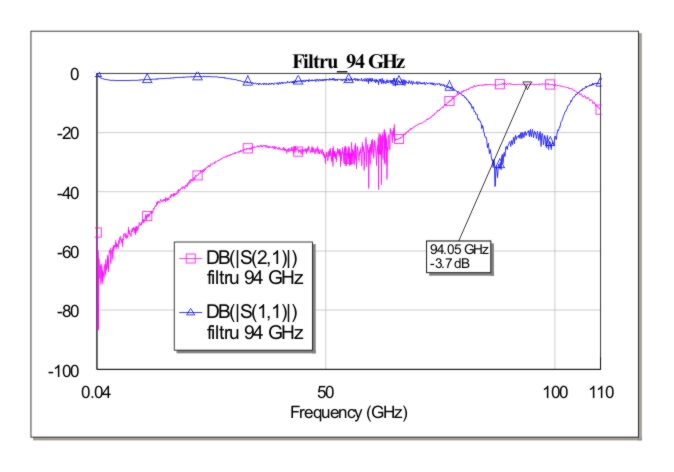

S parameters for 94 GHz filter |
|
 |
|
Photo image of 94 GHz antenna |
|
 |
|

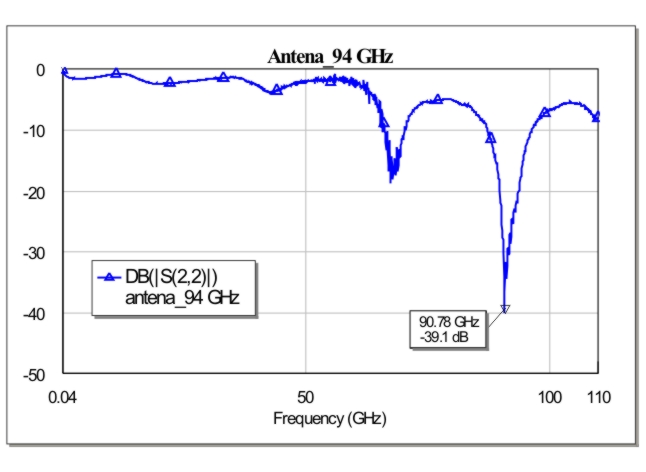

S22 parameter for 94 GHz antenna |
|
 |
|

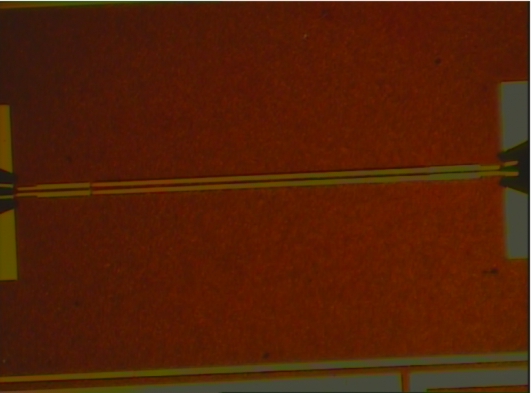

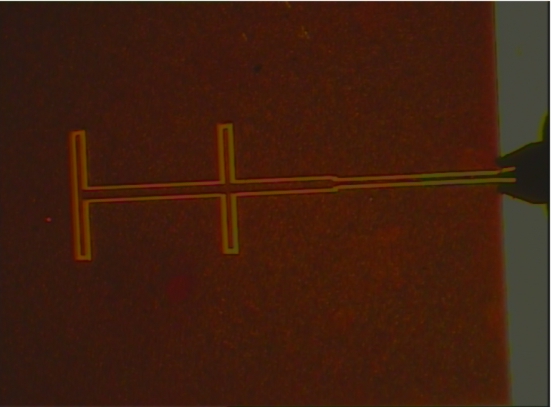

Short CPW transmission line (L =3900 μm) |
|
 |
|

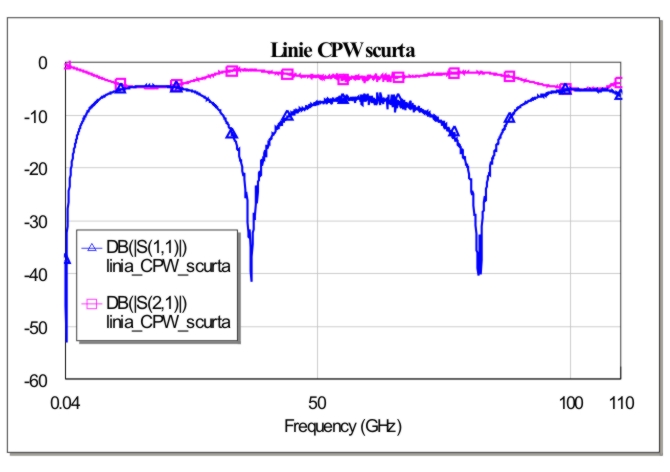

S parameter for the short CPW transmission line |
|
 |
|

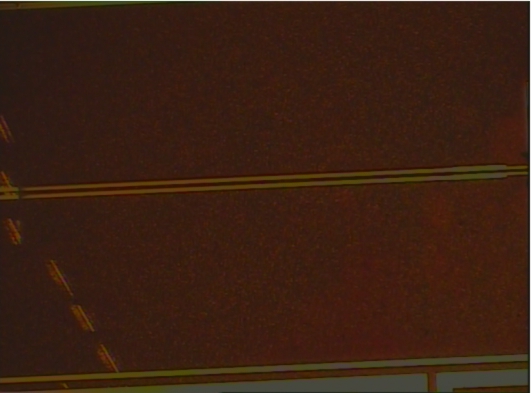

Long CPW transmission line (L=4900 μm) |
|
 |
|

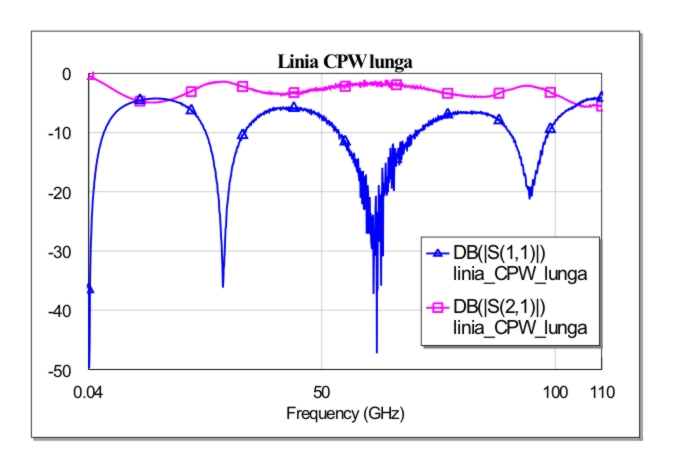

S parameter for the slong CPW transmission line |
|
 |
|

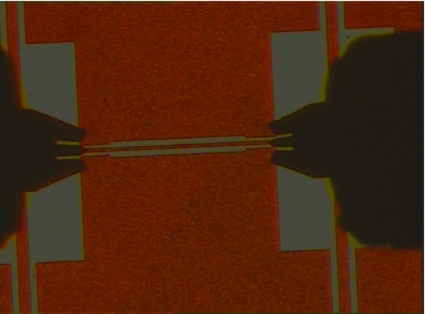

Photo image of a test structure for anisotropic etching |
|
 |
|

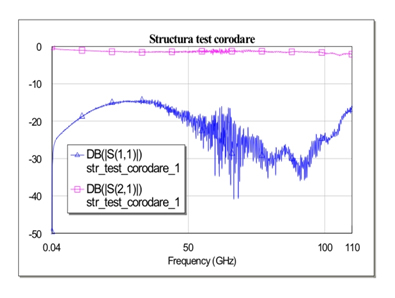

S parameter of the test structure for anisotropic etching |
|
