MINAFAB Characterization equipments

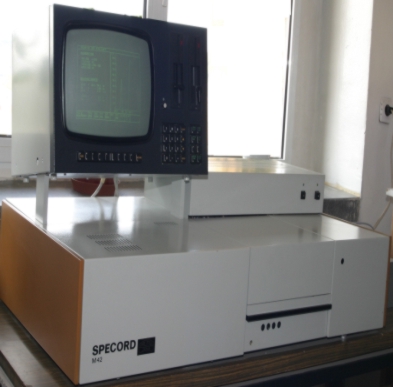

UV-VIS-NIR Spectrophotometer, SPECORD M42

Technical characteristics:

The spectrophotometer SPECORD   M42  with double spot and  (200  – 900) nm spectral range contains modules for transmitance  and reflectance  measurements and enables data acquisition by a PC in order to processing of the measured data with specific softwares. The equipment operates in any transparent ambient, including vacuum, gases and air.

Description

The equipment can be used for:
· optical    characterization by  recording the transmission and absorbtion spectra for transparent samples and for solutions with  +/- 0.3 nm precision in wavelength;
· thin films   characterization by  recording the transmistance, absorbance  spectra  [T(λ) , A(λ) ] and the reflectance, R(λ) used for  optical coatings;
· surface reflectivity characterization of the texturized and porosified surfaces,
· material properties: the absorption coefficient and the bandgap for the semiconductor and dielectric films obtained by  processing  of T(λ) and R(λ).

**********************

Applications:

Testing the optical properties of samples for the ability to reflect or transmit light.

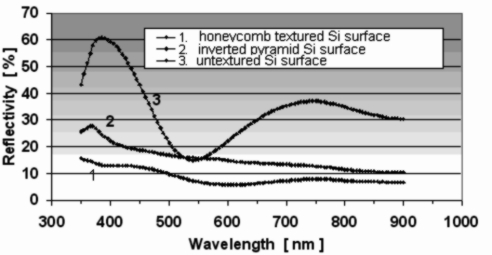

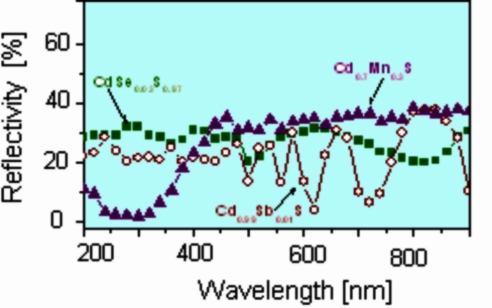

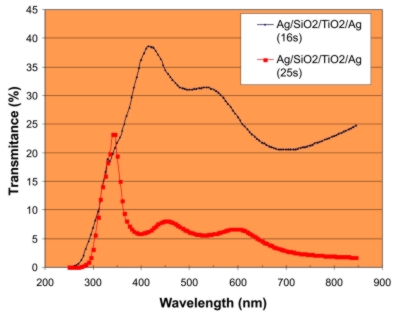

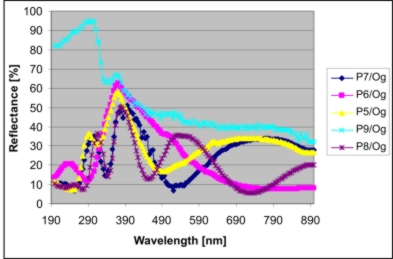

Results:
******************************************************************

Partneship:

  • European Centre of Excellence in Microwave, Millimetre Wave and Optical Devices, based on Micro-Electro-Mechanical Systems for Advanced Communication Systems and Sensors -  MIMOMEMS (FP7-Capacities) 2008-2010;
  • Flexible Patterning of Complex Micro Optical Structures using Adaptive Embossing Technology  FLEXPAET (IP- FP7/NMP) 2008-201;
******************************************************************

Application scientist: dr. phys. Munizer Purica, [email protected]
